Rail In-motion:

Product Specification

We provide superior quality rail in-motion weighing systems, automatic weighing systems that are based on latest technology. Our rail in motion weighing systems is available in customized mode to meet the exact demands of our clients. Our wide array of rail in motion weighing systems comprises of the following:

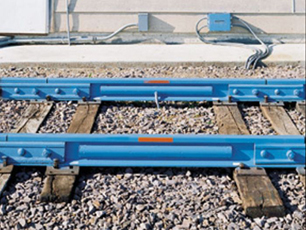

rail in-motion
rail in-motion



Specification:

  • Weighing Capacity : 120 T for individual Wagon
  • Type of Wagon: All types of standard Wagons of Indian Rly.
  • Type of Weighing : Axle
  • No. of Axles : 2, 4 axles wagons
  • Axle: Load : 45 Ton (Maximum)
  • Weighing Speed : 20 KM/Hr.
  • Direction of Weighment : Bi Direction
  • Load Sensor Type : Strain gauge,
  • No of strain gauges per weigh Rail : 2
  • Surge protection : In built
  • Safe over load withstand capacity : 150% rated capacity
  • Inbuilt 24 bit Delta sigma ADC
  • Calibration : Automatic
  • Resolution : Selectable 10/20/50/100 Kg
  • Accuracy : (+) / (-) 0.5% for wagon
  • (+) / (-) 0.2% for complete rake
  • Power Supply : 230 V, +/- 10% single Phase 50 Hz
